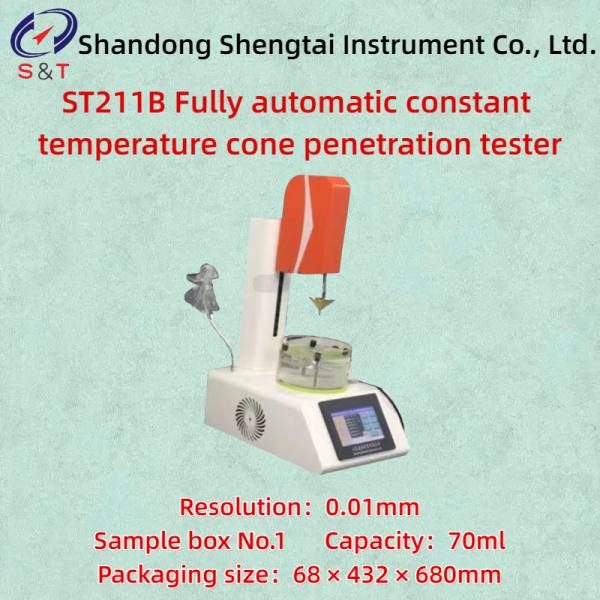

ST211B Fully automatic constant temperature cone penetration tester
The ST211B fully automatic constant temperature cone penetration tester is designed and manufactured according to the technical requirements and relevant regulations of the 2025 Chinese Pharmacopoeia 0983 cone penetration measurement method. It is mainly suitable for testing the cone penetration of Vaseline and ointment. With a microprocessor as the core, it integrates mechanical, optoelectronic, and micro detection technologies. The lifting arm automatically lifts and lowers, the touch screen fine tunes the distance, automatically determines the results, and automatically prints.
Main technical features
● Compliant with the standard: Cone Penetration Determination Method of Chinese Pharmacopoeia 0983 in 2025
● Upgrade to 7-inch TFT color LCD display;
● Constant temperature cooling method: built-in semiconductor cooling.
● Detection method: high-precision displacement sensor.
● Other: Equipped with a cold light source for easy use and operation.
● Storage method: The experimental results can store 1999 sets of historical data for easy retrieval;
● Result output: It can also be equipped with a USB drive output function to output to the PC for long-term storage
● Output format: The output format of the result USB drive is CSV or Excel.
● Data protection: equipped with date and password setting function.
● Standard printing: Standard micro printer with automatic measurement and needle printing
● Remote upgrade: Equipped with TCP network transmission function, software remote upgrade can be performed later (optional)
● Data Management: Can be connected to LIMS system (optional)
● Account management: Set up hierarchical account management based on password, with the ability to set up a total account and sub accounts, and have role assignment function (optional).
● Audit Tracking: The audit tracking function based on account hierarchy allows for role allocation, including administrators, engineers, operators, and other roles, which can be fixed or optional.
Main technical parameters and indicators
| Standard | Chinese Pharmacopoeia 2025 |
| Measurement range | 1-700 cone penetration |
| Constant temperature method | built-in refrigeration |
| Cone penetration accuracy | ± 1 cone penetration degree |
| Resolution | 0.01mm |
| Temperature measurement range | 10-50 degrees (equipped with semiconductor cold cycle device, capable of heating or cooling) |
| Cone No.1 | Cone mass: 102.5g ± 0.05g Matching cone rod mass: 47.5g ± 0.05g |
| Cone No.2 | Cone mass: 22.5g ± 0.025g Matching cone rod mass: 15g ± 0.025g |
| Cone No. 3 | Total mass of cone and cone rod: 9.38g ± 0.025g |
| Sample box No.1 | Capacity 270ml |
| Sample box No.2 | Capacity 45 milliliters |
| Sample box No.3 | Capacity 5 milliliters |
| Packaging size | 568 × 432 × 680mm |
| Packaging weight | 23.13kg |
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packing list
| Number | Name | specifications | Quantity | Note |
| 1 | Fully automatic cone penetration tester | Host | 1 unit | |
| 2 | Cone No.1 | | 1 piece | |
| 3 | Cone No.2 | | 1 piece | Optional |
| 4 | Cone No.3 | | 1 piece | Optional |
| 5 | Sample box No.1 | | 1 piece | |
| 6 | Sample box No.2 | | 1 piece | Optional |
| 7 | Sample box No.3 | | 1 piece | Optional |
| 8 | Heating, cooling, constant temperature bath | | 1 unit | Built-in |
| 9 | Power line | | 1 piece | |
| 10 | Certificate of Conformity Warranty Card | | 1 copy | |
| 11 | Instructions | | 1 copy | |
| 12 | Printing paper | | 2 rolls | |
